    Guide to British-made Aluminum Mess Tins (1936-1940)

    Wgrenadier
    Wgrenadier
    Moderator

    Posts : 289
    Join date : 2013-02-16

    Guide to British-made Aluminum Mess Tins (1936-1940) Empty Guide to British-made Aluminum Mess Tins (1936-1940)

    Post by Wgrenadier on Fri Aug 29, 2014 10:53 pm

    Guide to British-made Aluminum Mess Tins (1936-1940) 00_tin10

    Guide to British-made Aluminum Mess Tins (1936-1940)

    Although rectangular aluminum mess tins may strike the collector as a late development of Second World War, they were actually the original design that was meant to accompany the Pattern 1937 webbing set. The reference site 'Karkee Web' goes into great detail on this subject and describes how these early aluminum tins were replaced in 1940 by a tinned steel model so that aluminum manufacturers could focus on the needs of the aircraft industry. You can find this history by clicking on the following link...

    http://www.karkeeweb.com/patterns/1937/1937_associated_equipment_other.html

    Since early British aluminum mess tins were used by most of the Empire early in the war, the following guide of known makers may be of some benefit. It was compiled with great difficulty and is by no means complete.

    Guide to British-made Aluminum Mess Tins (1936-1940) 01_the10Guide to British-made Aluminum Mess Tins (1936-1940) 01a11

    Maker Mark: THE LONDON ALUMINIUM CO. LTD.
    Company Name: The London Aluminium Company, Limited
    Location: Witton, Birmingham
    Dates Observed: 1936
    Handle Attachment: Riveted
    Banded Handle?: No
    Notes: The mess tin above may be the earliest known example of a rectangular, nested mess tin. It was made to accompany an order from the Union of South Africa for Mills Equipment Company's latest set of webbing in the mid 1930's.


    Guide to British-made Aluminum Mess Tins (1936-1940) 02_s_h10Guide to British-made Aluminum Mess Tins (1936-1940) 02a_ap11

    Maker Mark: S.&H.LTD.
    Company Name: Sellman & Hill, Limited - Crescent Works
    Location: Wolverhampton
    Dates Observed: 1938-1940
    Handle Attachment: Welded (Later Riveted)
    Banded Handle?: No
    Notes: This firm employed welding to attach the hinge plates early on in production, which was an extremely difficult process. The advertisement is from April 1933


    Guide to British-made Aluminum Mess Tins (1936-1940) 03_n_c10Guide to British-made Aluminum Mess Tins (1936-1940) 03a_n_11Guide to British-made Aluminum Mess Tins (1936-1940) 03b_n_11

    Maker Mark: N.C.J.LTD.
    Company Name: N.C. Joseph, Limited
    Location: Stratford on Avon
    Dates Observed: 1938-1939
    Handle Attachment: Riveted
    Banded Handle?: No
    Notes: The additional pictures show an aerial view of the N.C.J. Works in 1947 as well as the neglected gate of the complex in 2006.


    Guide to British-made Aluminum Mess Tins (1936-1940) 04_c__10Guide to British-made Aluminum Mess Tins (1936-1940) 04a_de10

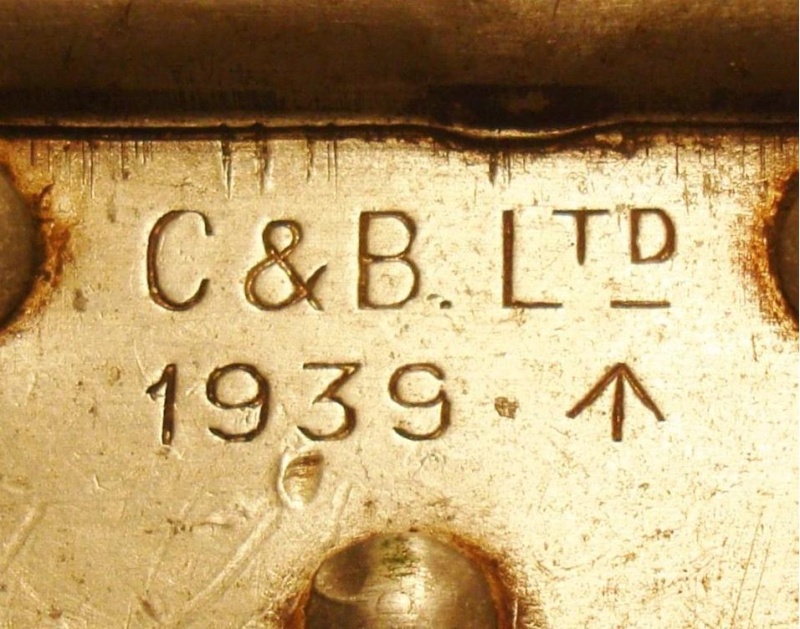

    Maker Mark: C&B LTD.
    Company Name: Corfield & Buckle, Limited - Trafalgar Works
    Location: London
    Dates Observed: 1939
    Handle Attachment: Riveted
    Banded Handle?: No
    Notes: The advertisement is from December 1939.


    Guide to British-made Aluminum Mess Tins (1936-1940) 05_e__10Guide to British-made Aluminum Mess Tins (1936-1940) 05a_1910

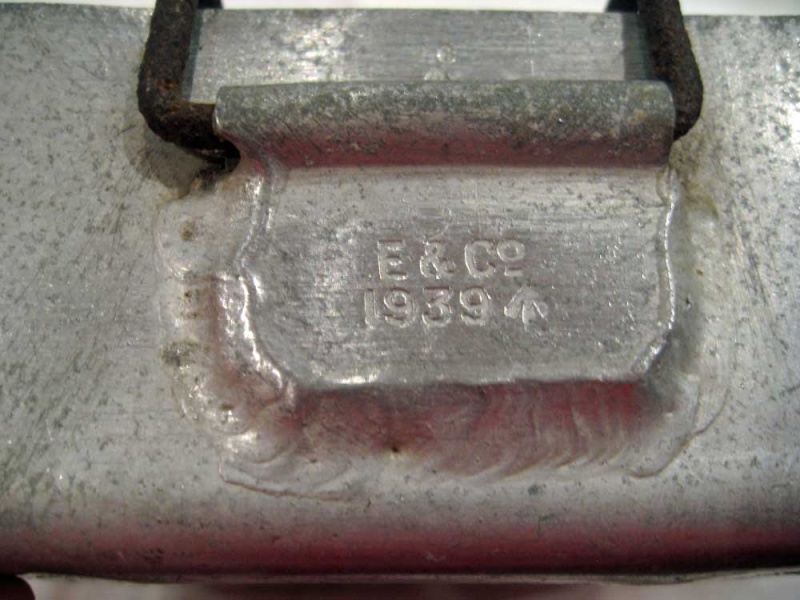

    Maker Mark: E&CO.
    Company Name: Everitt & Company, Limited
    Location: Liverpool
    Dates Observed: 1939
    Handle Attachment: Welded
    Banded Handle?: No
    Notes: This firm also employed welding to attach the hinge plates. The advertisement is from 1940.


    Guide to British-made Aluminum Mess Tins (1936-1940) 06_l_a10Guide to British-made Aluminum Mess Tins (1936-1940) 06a_1910

    Maker Mark: L.A CO
    Company Name: The London Aluminium Company, Limited
    Location: Witton, Birmingham
    Dates Observed: 1939
    Handle Attachment: Riveted
    Banded Handle?: Yes
    Notes: Mess tin examples from this firm feature an additional band to keep the handle from separating and falling out of the hinge plate. The advertisement is from 1940.


    Guide to British-made Aluminum Mess Tins (1936-1940) 07_h__10Guide to British-made Aluminum Mess Tins (1936-1940) 07a_ap10

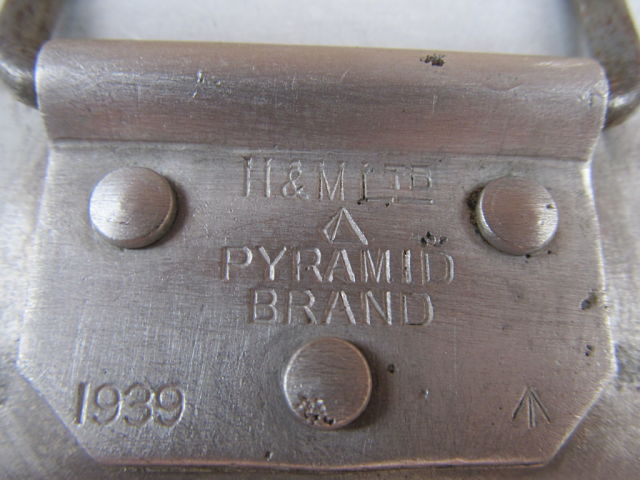

    Maker Mark: H.&M. LTD PYRAMID BRAND
    Company Name: Hague & McKenzie, Limited - Pyramid Works
    Location: Birmingham
    Dates Observed: 1939
    Handle Attachment: Riveted
    Banded Handle?: No
    Notes: The advertisement is from April 1933.


    Guide to British-made Aluminum Mess Tins (1936-1940) 08_bul10Guide to British-made Aluminum Mess Tins (1936-1940) 08a_bu10Guide to British-made Aluminum Mess Tins (1936-1940) 08b_bu10Guide to British-made Aluminum Mess Tins (1936-1940) 08c_1910

    Maker Mark: BULPITT & SONS LTD.
    Company Name: Bulpitt & Sons, Limited - Swansea Works
    Location: Birmingham
    Dates Observed: 1939
    Handle Attachment: Welded
    Banded Handle?: Yes
    Notes: The additional pictures show Bulpitt & Sons Ltd. Camden Street, Birmingham c.1933 as well as two advertisements (1938 and 1945).


    Guide to British-made Aluminum Mess Tins (1936-1940) 09_c-s10

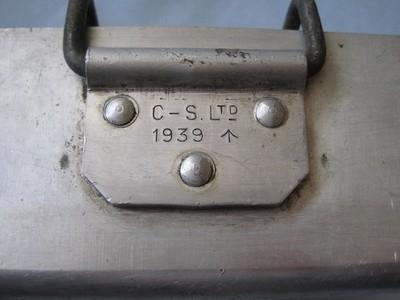

    Maker Mark: C-S. LTD
    Company Name: Clydesdale Stamping Company, Limited?
    Location: Dudley?
    Dates Observed: 1939
    Handle Attachment: Riveted
    Banded Handle?: No
    Notes: The author is not certain of the identity of this maker, but Clydesdale was the closest option.


    Guide to British-made Aluminum Mess Tins (1936-1940) 10_w_b10Guide to British-made Aluminum Mess Tins (1936-1940) 10a_se10

    Maker Mark: W (B) LTD.
    Company Name: Williams (Birmingham), Limited
    Location: Birmingham
    Dates Observed: 1939
    Handle Attachment: Riveted
    Banded Handle?: Yes
    Notes: Please forgive the poor quality picture on this maker. The additional article was written in September 1939 and describes how The London Aluminium Company was acquired by Williams (Birmingham). It is interesting to note that this acquisition is probably the reason Williams (Birmingham) mess tins include a banded handle.


    Guide to British-made Aluminum Mess Tins (1936-1940) 11_t_l10Guide to British-made Aluminum Mess Tins (1936-1940) 11a_1910

    Maker Mark: T.L & CO
    Company Name: Taylor, Law & Company, Limited - Tala Works
    Location: Birmingham
    Dates Observed: 1939-1940
    Handle Attachment: Riveted
    Banded Handle?: No
    Notes: The advertisement is from 1938.
    48th
    48th
    Member

    Posts : 285
    Join date : 2012-12-05

    Guide to British-made Aluminum Mess Tins (1936-1940) Empty Re: Guide to British-made Aluminum Mess Tins (1936-1940)

    Post by 48th on Sat Aug 30, 2014 6:06 am

    Wow, Another great post by you Wgrenadier! Thank you for taking  the time to share all this with us. Your attention to detail is amazing. Very informative.
    Haplo
    Haplo
    Member

    Posts : 109
    Join date : 2010-03-26
    Age : 40
    Location : The Netherlands

    Guide to British-made Aluminum Mess Tins (1936-1940) Empty Re: Guide to British-made Aluminum Mess Tins (1936-1940)

    Post by Haplo on Tue Sep 02, 2014 12:29 pm

    Indeed.
    Yet again a wonderfull post.
    Very informative.
    Wgrenadier
    Wgrenadier
    Moderator

    Posts : 289
    Join date : 2013-02-16

    Guide to British-made Aluminum Mess Tins (1936-1940) Empty Re: Guide to British-made Aluminum Mess Tins (1936-1940)

    Post by Wgrenadier on Tue Sep 02, 2014 7:07 pm

    Thanks 48th & Haplo!

    I wonder how many of these early tins made it to Canada during the war...
