    Identifying Cobalt Enamelled Water-bottles

    One piece of British/Commonwealth militaria that is consistently misidentified is the cobalt-blue enamelled water-bottle. Although its color often leads people to assume it is an accoutrement from the Great War, blue water-bottles were produced well into the post-WWII era. This brief overview of the commonly encountered variants will, hopefully, serve as a guide to collectors and allow them to determine for themselves whether a bottle is being misrepresented by a seller. This list is by no means complete or perfect and any input/pictures from other members of this forum would greatly contribute to the general knowledge!

    The Bottle, water, enamelled. (Mark V.) was introduced in March 1903 and featured a funnel spout as seen below…

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00110

    This pattern was replaced in a few months by the Mk VI which was identical, with the exception of a normal spout. The Mk VI was one of a number of patterns used by British and Empire Forces in the First World War and the Interwar years. It was replaced by the Mk VII in November 1939, which featured a small wire ‘eye’ for the stopper cord and often green enamelling. Although many Mk VII water-bottles were produced in a green color, blue was still used on some variants. This leaves the wire loop as the only dependable difference between the Mk VI and the Mk VII.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00210

    WWI

    The Mk VI water-bottle used in the First World War was officially of the form with a molded, rounded top and a “tin can” type base. These lacked any type of wire ‘eye’ since stopper cords were stitched directly to the felt covers.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00310Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00410

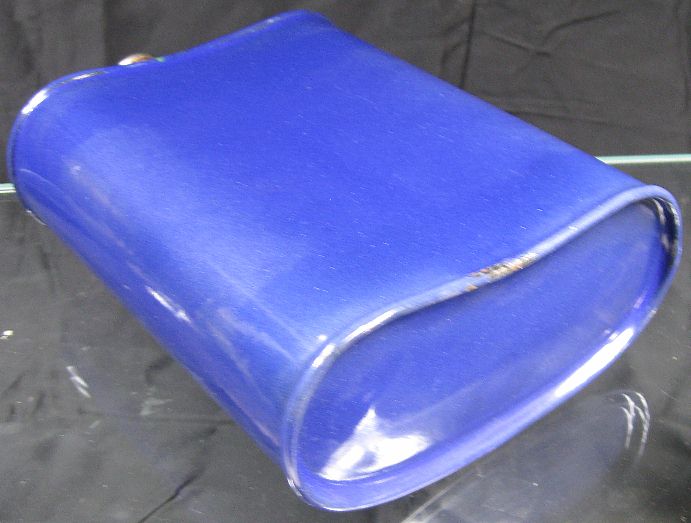

    Another Great War Mk VI variant featured “tin can” type top and base, which give the bottle a more rectangular appearance (again with no loop of any kind).

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00510Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00610Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00710

    Yet another variant featured a flatter, molded top and a completely flat base.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00810Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 00910

    If you are looking for a British enamelled water-bottle from the First World War, it should be one of the three aforementioned styles.

    With the start of the Second World War and the introduction of the Mk VII, a number of variant blue-enamelled bottles were produced across the Empire.

    NEW ZEALAND

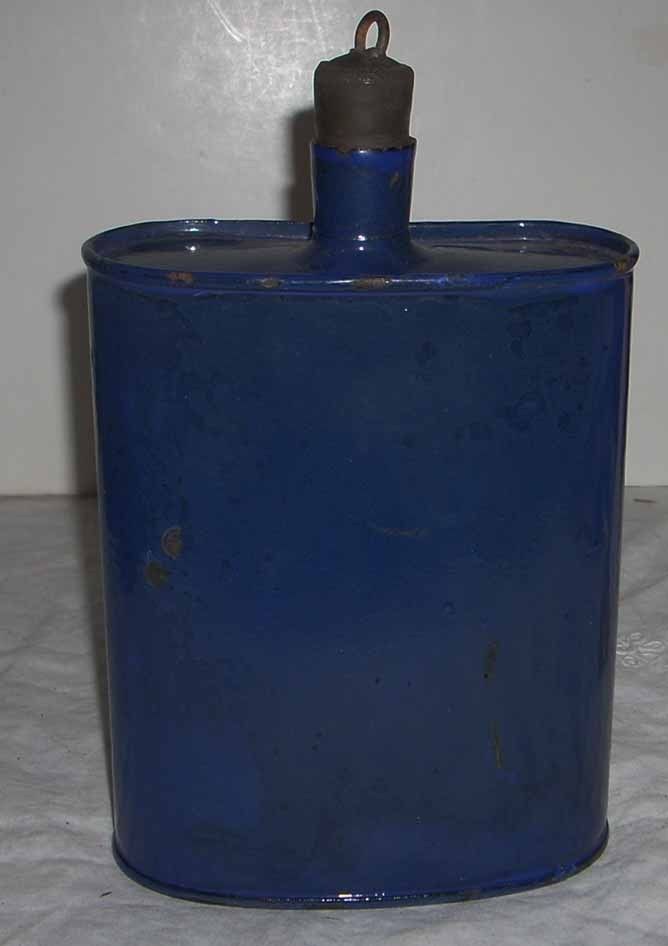

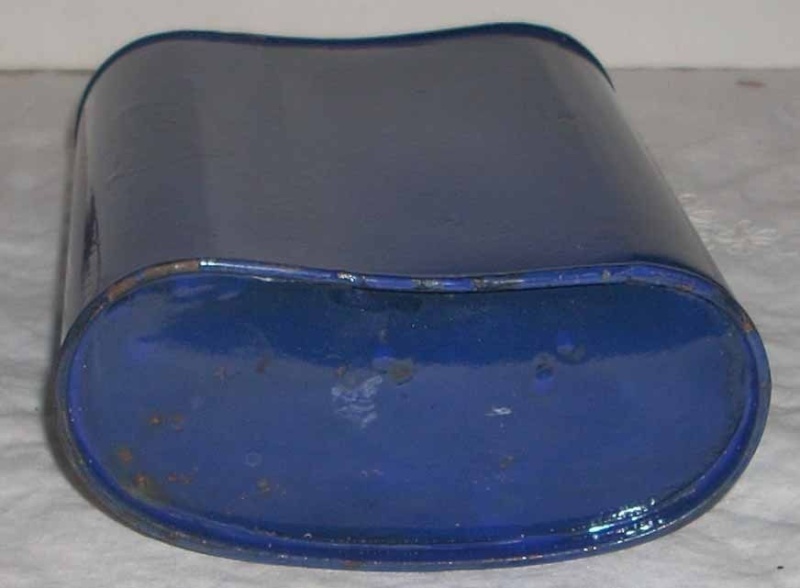

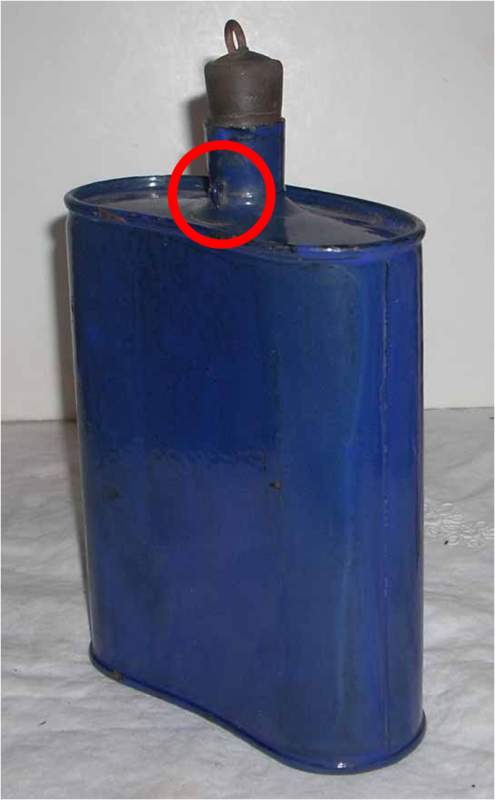

    The National Electric & Engineering Company, Limited and Kia Ora Galvanizing, Limited produced around 2,000,000 cobalt-blue Mk VII bottles. These are often identifiable by their removeable felt covers (with a drawstring closure) and use of wooden or rubber stoppers. When the cover and stopper are missing, New Zealand water-bottles can be identified by their “tin can” type top and base (very similar to the Great War variant) and, more importantly, the presence of a wire ‘eye’ at the BACK of the neck of the spout. Note the rubber stopper and the location of the wire ‘eye’ on the example below

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01010Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01110Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01210

    CANADA

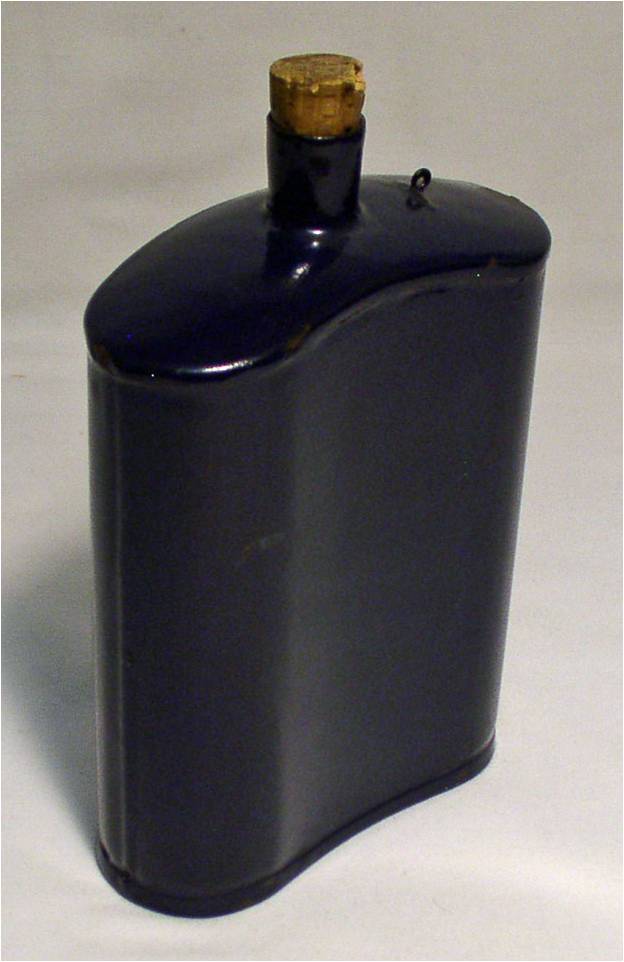

    Canada’s first Mk VII water-bottles were very similar to the Mk VI’s of the First World War, complete with cobalt-blue enamel, old pattern felt covers, and 18 inch stopper cords. However, Canadian Mk VII’s featured a wire loop on the left shoulder of the bottle that was completely obscured by the cover. Canadian bottles were very close to the official pattern with a molded, rounded top and a “tin can” type base.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01310Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01410Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01510Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01610Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01710

    INDIA

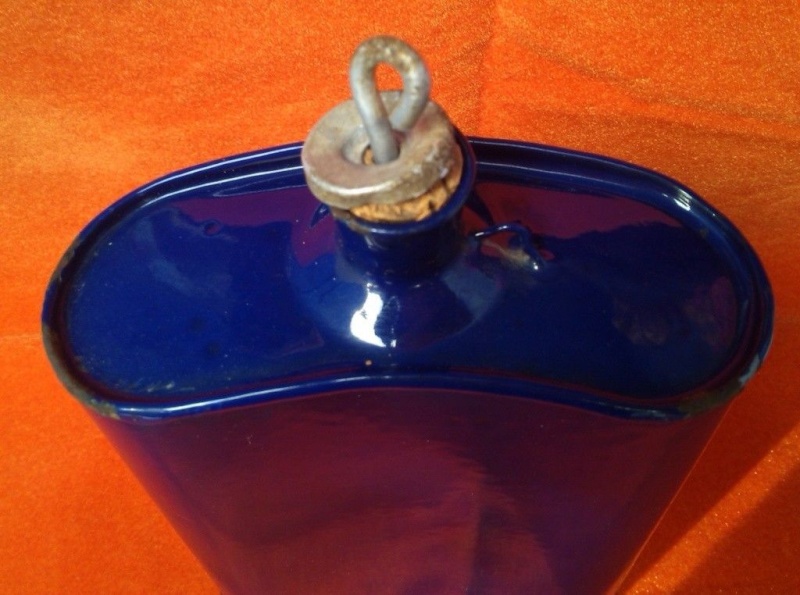

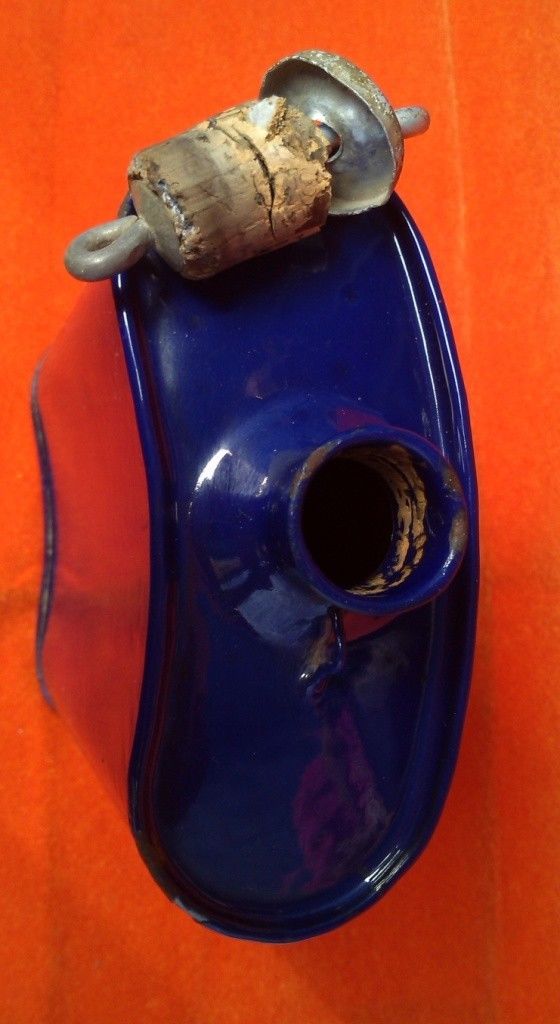

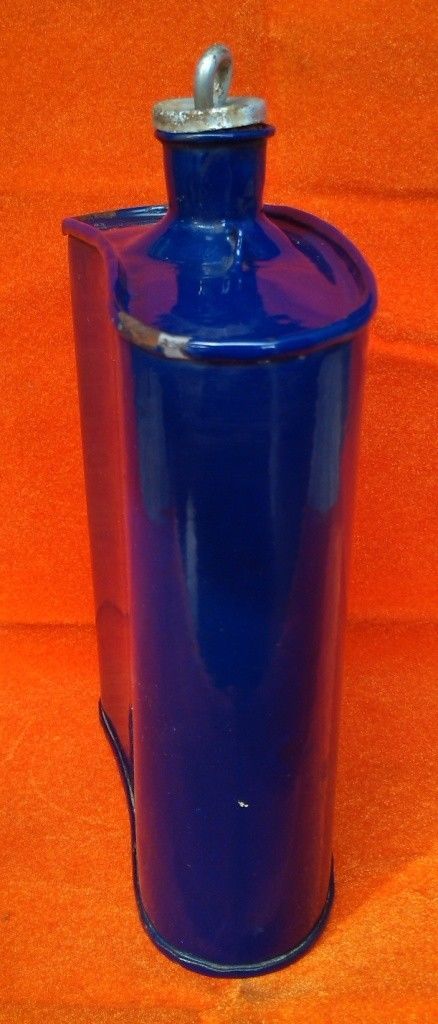

    Bengal Enamel produced large quantities of crudely made cobalt-blue Mk VII water-bottles after the Second World War. These were most likely used by the Bangladesh and Indian armies, which were still using Pattern 1937 webbing. It is unclear if Bengal Enamel produced these Mk VII’s during the Second World War, since the earliest examples seem to date from the 1950’s. Indian water-bottles have a A)“tin can” type top (slightly curved) and base B) flared spout and C) conical neck joint with a D) wire loop to the left side. Most Indian water-bottles are marked on the bottom and a variety of stoppers are seen including cork, wood and rubber.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01810Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 01910Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02010Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02110Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02210Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02310Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02410Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02510

    BRITAIN

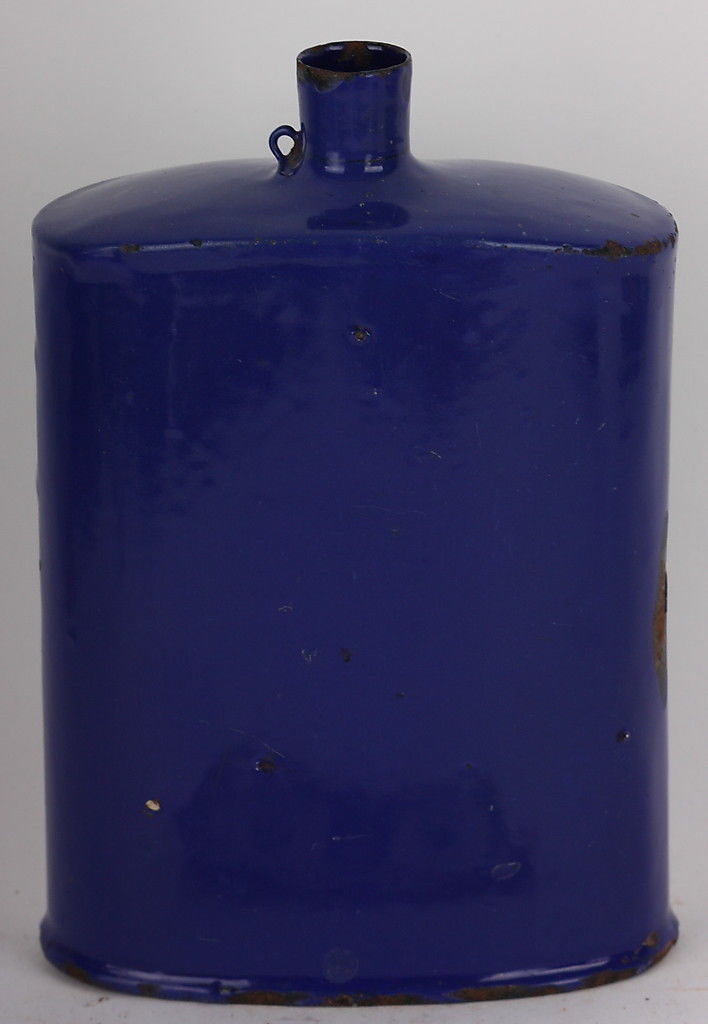

    After the Second World War, the Royal Air Force produced huge quantities of cobalt-blue Mk VII water-bottles. These often have the blue-grey wool covers that were introduced postwar. Prewar and wartime RAF water-bottles used drab covers concealed by blue-grey Pattern 1937 sleeve carriers. These bottles are often sold as First World War Mk VI bottles, despite the presence of the wire ‘eye’ welded to the left shoulder and neck of the bottle. RAF bottles follow the official pattern with a molded, rounded top and a “tin can” type base.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02610Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02710Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02810Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 02910

    AUSTRALIA

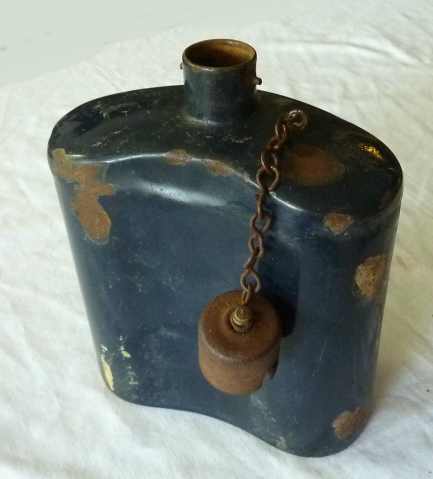

    Australia manufactured the following smaller variant water-bottle, most likely in the interwar years, with a metal ‘bayonet mount’ stopper.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03010Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03110Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03210Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03310

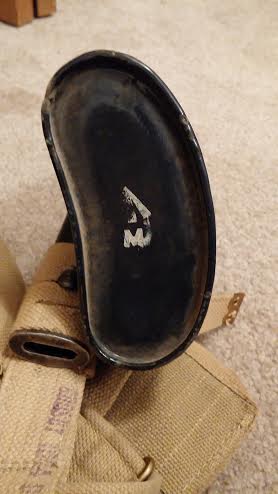

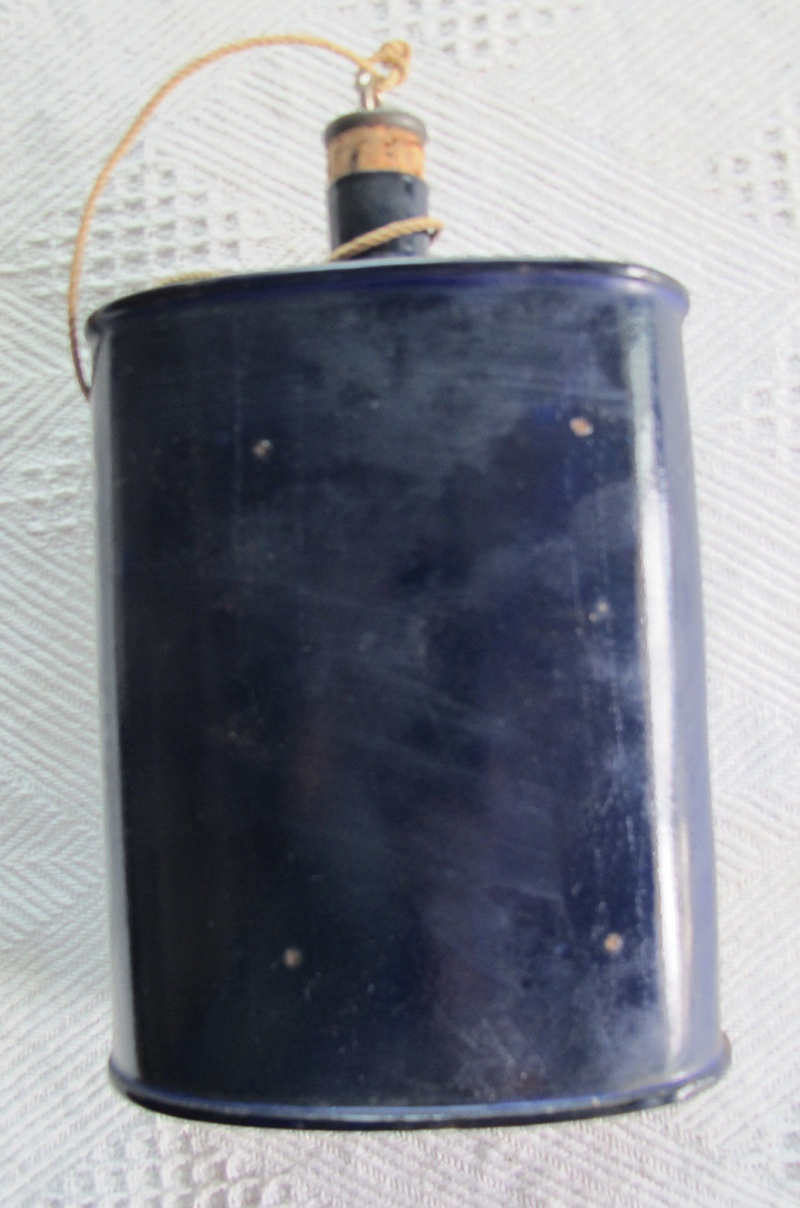

    Australia produced truly Mk VI water-bottles during the Second World War, that lacked any form of wire loop. These bottles featured stopper cords stitched directly to their covers, rounded shoulders within a flat “tin can” seam on the top and a “tin can” type base. Second World War Australian bottles also feature stoppers marked with Australian “D/|\D” acceptance marks as well as acceptance marks directly on the bottles in the form of letter codes surmounted by a broad arrow.

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03410Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03510Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03610Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03710Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03810Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles 03910



    It is unclear to the author whether or not Australia produced its own Mk VI water-bottles during the First World War and if these are distinguishable from later examples. Any input from Australian members would be greatly appreciated!

    I hope this overview has been interesting and informative. Thanks for reading!
    Infanteer
    Infanteer
    Member


    Posts : 820
    Join date : 2009-12-11

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles Empty Re: Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles

    Post by Infanteer Wed May 14, 2014 12:04 pm

    Great information and answers some questions that I've had for quite some time. Thank you very much for sharing.
    Haplo
    Haplo
    Member


    Posts : 107
    Join date : 2010-03-26
    Age : 45
    Location : The Netherlands

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles Empty Re: Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles

    Post by Haplo Thu May 15, 2014 9:26 am

    Again some wonderfull information. not worthy
    I agree with Infanteer.
    Some questions are answerd.
    48th
    48th
    Member


    Posts : 287
    Join date : 2012-12-05

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles Empty Re: Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles

    Post by 48th Fri May 16, 2014 6:24 pm


    Another great article! Very informative and detailed. Well done

    All of your articles on this site would be a good start to a great book.
    Wgrenadier
    Wgrenadier
    Moderator


    Posts : 289
    Join date : 2013-02-16

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles Empty Re: Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles

    Post by Wgrenadier Mon Jun 16, 2014 9:03 pm

    Thanks for the nice words guys! I'm really glad it was of interest (it was fun to write, honestly)!
    mk1rceme
    mk1rceme
    Administrator


    Posts : 2215
    Join date : 2009-11-22
    Age : 53
    Location : Alberta, Canada

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles Empty Re: Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles

    Post by mk1rceme Tue Jun 17, 2014 12:04 am

    Fantastic job! Answered a lot of questions for me as well.


    _________________
    Dale
    Admin-CMCF
    2ndAIF
    2ndAIF
    Member


    Posts : 60
    Join date : 2013-02-03
    Age : 43
    Location : AUSTRALIA

    Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles Empty Re: Distinguishing Cobalt Blue Mk VI and Mk VII Water-Bottles

    Post by 2ndAIF Sat Jun 21, 2014 7:20 am

    Great write up mate! And some great info... I can add to the Aussie side of things, the canteens were made with both 'tin can' and rounded tops and not all stoppers were marked with D^D I am pretty sure QP were the only ones to do this most others were marked with manufacturers names like 'Rider and Bell' for example while some weren't marked at all. You will also find that canteens manufactured by Rheem had the company named pressed into the bottom. This is all off the top of my head there is probably a bit more I could add but I would have to look at mine to see if I missed anything.

    Cheers Luke.
